The N78300 Series is a high-power programmable AC/DC power supply offering AC, DC, AC+DC, and DC+AC output modes with comprehensive protection features. The series supports selectable single-phase or three-phase output configurations to accommodate diverse application scenarios. Equipped with sequence mode, arbitrary waveform edit, sweep mode, and surge & sag mode, the N78300 Series meets a wide range of advanced testing requirements. It is widely used in electric vehicles, smart home appliances, 3C consumer electronics, LED lighting, and other applications.
Main Features
- High power density design delivering 25kVA in a 3U chassis, with parallel capability for power expansion Harmonic simulation and analysis up to the 50th order
- Voltage range: 0–350V (L-N)
- Output frequency range: 1–500Hz with adjustable voltage and frequency slew rate
- Programmable switch-on/switch-off phase angle: 0–360°
- Harmonic and inter-harmonic distortion waveform synthesis and analysis
- Supports four output modes:AC, DC,AC+DC, DC+AC
- Standard interfaces: USB, CAN, LAN, Digital I/O; optional GPIB, RS232
- Selectable single-phase, three-phase, and reverse-phase output modes
- Supports Modbus-RTU, SCPI, CANopen, and other communication protocols
- Programmable voltage and current slew rate to accommodate diverse testing requirements
- 6.8-inch high-definition LCD display for clearer test information
Application Fields
- Electric Vehicles & Charging Infrastructure: On-board chargers, motor drives, charging stations, microgrid systems
- Power Electronics & Electrical Equipment: UPS uninterruptible power supplies, variable frequency drives, switching power supplies
- Consumer Electronics & Home Appliances: Power adapters, televisions, refrigerators, air conditioners, LED drivers, and more
- Aerospace & Avionics: Airborne equipment, aircraft electrical power systems, avionics testing
- Medical Devices: ECG, CT, MRI, ventilators, surgical robots, and more
Functions & Advantages
Comprehensive Grid Fault & Waveform Simulation

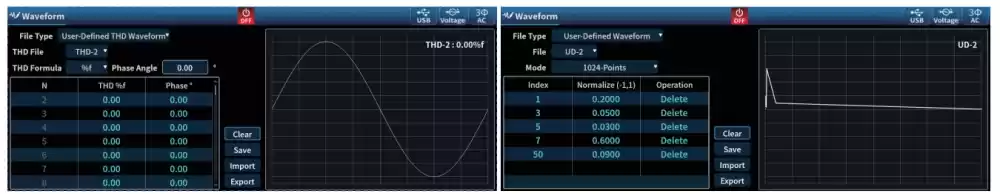

Standard Waveform Output: In addition to pure sine waves, users can define and output non-standard waveforms including triangle, sawtooth, square, and trapezoidal waves. The instrument also features built-in IEC61000-4-11/4-13/4-14/4-27/4-29 test compliance waveforms, enabling evaluation of device under test (DUT) tolerance to complex grid conditions such as voltage sags/swells,frequency deviations, phase jumps, and voltage flicker.

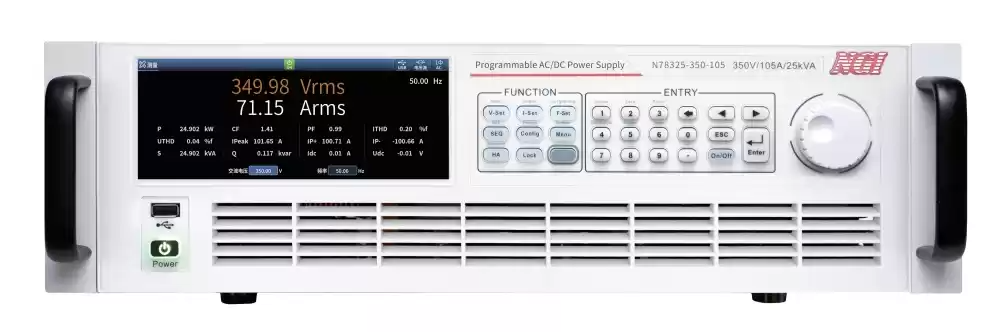

High Power Density, Modular Design
The N78300 Series employs a high power density design, delivering 25kVA in a compact 19inch/3U chassis with parallel expansion capability for flexible scaling to higher power requirements. With twice the output power of conventional AC power supplies in the same footprint, the N78300 Series significantly saves test space in high-power testing scenarios, eliminating the need for additional racks or laboratory expansion and effectively reducing customer test costs.
Harmonic/Inter-Harmonic Simulation

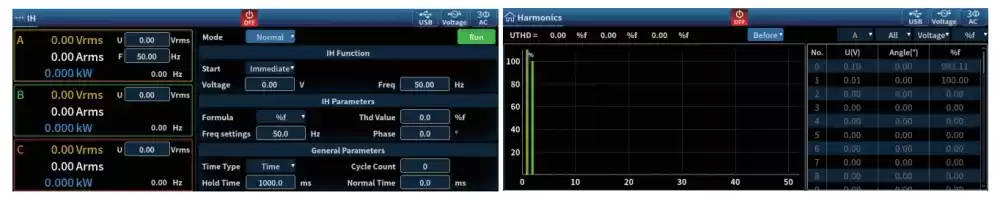

The N78300 Series supports independent amplitude and phase settings for each harmonic, enabling simulation of up to the 50th harmonic (at 50Hz/60Hz fundamental frequency) to generate periodic distortion waveforms that meet specific testing requirements. The instrument features 30 preset harmonic distortion waveforms for quick recall and testing. The N78300 Series supports single-phase harmonics, three-phase harmonics, and unbalanced three-phase harmonic output, fully meeting IEC harmonic immunity test requirements and serving as an essential tool for EMC immunity testing.

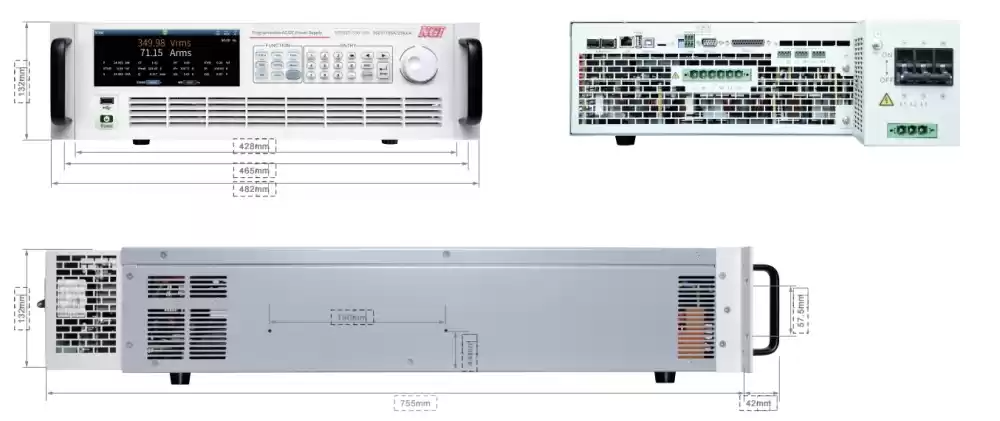

Product Dimension
